Example Applications

DEEPX provides two separate reference projects so that applications using the accelerator module can be developed quickly. DX-APP contains example application templates that can run on their own. DX-STREAM makes it possible to build GStreamer-based real-time video processing pipelines.

In order to run the commands in this section, the driver and runtime installation must be completed. You can verify the installation with the dxrt-cli -s command.

DX-APP Example Applications

DX-APP contains ready-to-use C++ and Python templates for tasks such as object detection, classification, pose estimation, segmentation, depth estimation and face recognition.

Cloning the Project

git clone https://github.com/DEEPX-AI/dx_app.git
cd dx_app

Installing the Dependencies

Run the script that installs the build tools and the OpenCV library.

./install.sh --all

Downloading the Models and Sample Videos

The models and videos used in the example applications are downloaded with the setup.sh script.

# The category and model selection is made through a menu
./setup.sh

# Only the specified models are downloaded
./setup.sh --models YoloV7 ResNet50

# All models available for download are listed
./setup.sh --list

The models are downloaded into the assets/models directory and the videos into assets/videos.

Building the Project

./build.sh

As a result of the build, the executable files are created in the bin directory.

If you want to build only the application you need, you can specify a target in the form ./build.sh --target yolov9s_sync. You can list the available targets with the ./build.sh --target list command.

Running the Examples

You can use the demo script to try all of the examples through a menu.

./run_demo.sh

It is also possible to run a specific example directly.

python3 src/python_example/object_detection/yolov7/yolov7_sync.py \
  --model assets/models/yolov7_640x640.dxnn \
  --image sample/img/sample_street.jpg

./bin/yolov7_sync \
  -m assets/models/yolov7_640x640.dxnn \
  -i sample/img/sample_street.jpg

Common Command Line Options

All of the examples in DX-APP use the same command line options.

Option	Description
`-m`, `--model`	The path of the `.dxnn` model file to be run
`-i`, `--image`	The image file or directory to be used as input
`-v`, `--video`	The video file to be used as input
`-c`, `--camera`	The camera device number to be used as input
`-r`, `--rtsp`	The RTSP stream address to be used as input
`-l`, `--loop`	The inference repeat count
`--no-display`	Disables the visualization window
`--save`	Saves the resulting output to a file
`--show-log`	Produces detailed log output

The --image, --video, --camera and --rtsp options are alternatives to each other and only one of them can be used. When none of them is specified, a sample image appropriate for the task is selected automatically.

If no display is connected to the development board or if you are working over SSH, you need to use the --no-display option. To view the result, you can save the output to a file with the --save option.

Synchronous and Asynchronous Templates

The example applications are provided in two forms, _sync and _async.

Synchronous (_sync) templates execute the pre-processing, inference and post-processing steps sequentially. They are suitable for working on a single image and for debugging.
Asynchronous (_async) templates allow the CPU to prepare frame number N+1 while the NPU is processing frame number N. They should be preferred in order to maximize the frame rate on video streams.

Video Processing with DX-STREAM

DX-STREAM is the set of plugins that adds DEEPX NPU support to the GStreamer framework. Thanks to this, images coming from a camera, a video file or an RTSP stream can be processed within a pipeline.

Plugin Elements

Element	Description
`dxpreprocess`	Converts the frame into the size and format expected by the model
`dxinfer`	Performs the inference on the NPU
`dxpostprocess`	Converts the model output into meaningful metadata (bounding boxes, classes)
`dxtracker`	Tracks detected objects across frames
`dxosd`	Draws the results onto the video frames
`dxgather`	Merges branches into a single output in multi-stream pipelines
`dxrate`	Limits the frame rate at which inference is performed
`dxmsgconv`	Converts metadata into a message format
`dxmsgbroker`	Forwards messages to an external server (for example MQTT)

You can inspect the installed plugins and their properties with the gst-inspect-1.0 tool.

gst-inspect-1.0 dxinfer

Example Pipeline

The pipeline below reads a video file, performs object detection with a YOLO model, draws the results onto the frames and saves them into a video file.

gst-launch-1.0 urisourcebin uri=file:///home/gemstone/dx_app/assets/videos/snowboard.mp4 ! decodebin ! \
  dxpreprocess \
    preprocess-id=1 \
    resize-width=640 \
    resize-height=640 ! \
  queue max-size-buffers=1 ! \
  dxinfer \
    preprocess-id=1 \
    inference-id=1 \
    model-path=/home/gemstone/dx_app/assets/models/yolov7_640x640.dxnn ! \
  queue max-size-buffers=1 ! \
  dxpostprocess \
    inference-id=1 \
    library-file-path=/usr/share/gstdxstream/lib/libpostprocess_yolov7.so \
    function-name=PostProcess ! \
  queue max-size-buffers=1 ! \
  dxosd ! \
  videoconvert ! jpegenc quality=85 ! avimux ! \
  filesink location=/home/gemstone/output.avi

The generated output has been saved to /home/gemstone/output.avi. You can access it through this file.

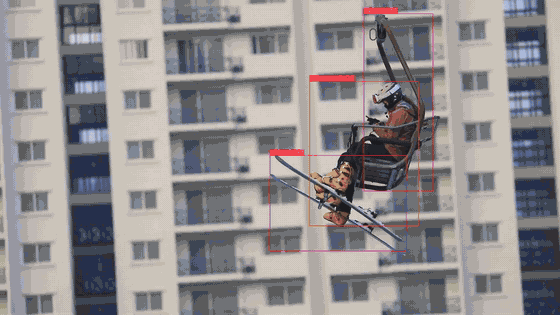

The output of the example pipeline: the objects detected with YOLOv7 are drawn onto the frames.

The image above was created with its resolution and duration reduced so that it could be shared as a GIF in the documentation. The actual output produced by the pipeline is at the resolution of the source video and at full length.

The pipeline works as follows.

Reads and decodes the video source. The path of the file to be processed is given in the uri property.

Resizes the frames according to the resize-width and resize-height values. The preprocess-id value is used to match the element with the subsequent dxinfer element.

Runs the .dxnn model specified with model-path on the NPU.

Decodes the model output using the shared library specified with library-file-path. The library to be used varies depending on the model family.

Draws the detection results onto the frame.

Converts the frames into the color format expected by the encoder, compresses them as JPEG with the quality=85 value and merges the resulting frames into an AVI container.

Writes the generated video to the file specified with location.

On systems with a display connected, instead of saving the output to a file you can view it directly on the screen together with the frame rate information with videoconvert ! fpsdisplaysink sync=false. On installations without an X11 environment, kmssink should be preferred over ximagesink.

The queue elements allow the pipeline to work asynchronously. When these elements are removed, the frame rate decreases because each stage waits for the previous one to finish.

Adding Object Tracking

When the dxtracker element is added after object detection, an identity (track ID) is assigned to the detected objects across frames.

... ! dxpostprocess ... ! queue max-size-buffers=1 ! dxtracker ! queue ! dxosd ! ...

The dxtracker element needs bounding box information. For this reason it must be placed after the object detection step within the pipeline.
